Übersicht der Rohrwinkel
Rohrwinkel, gebogen, 12-9
// Rohrwinkel, gebogen 12-9 $fn = 100; mirror(v= [1, 0, 0] ) { translate([0, -15, 0]) difference() { // Element A = grosser Ring rotate_extrude(angle=90,convexity = 10) translate([15, 0, 0]) circle(r = 5); // Element B = kleiner Ring rotate_extrude(angle = 91,convexity = 10) translate([15, 0, 0]) circle(r = 4); // Element C = Scheibe translate([15, 0, 0]) rotate([90,0,0]) cylinder(h = 1, r = 4, center = true); } }

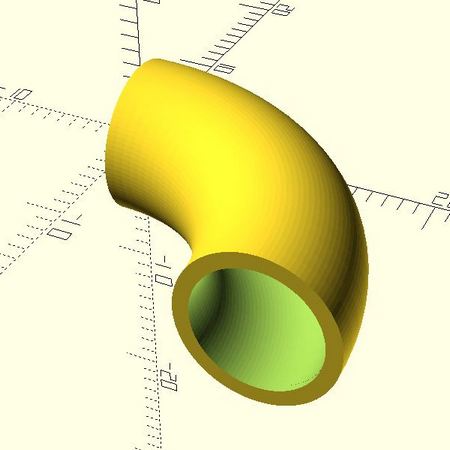

Rohrwinkel, gebogen, 12-3
// Rohrwinkel, gebogen 12-3 $fn = 100; translate([0, -15, 0]) difference() { // Element A = grosser Ring rotate_extrude(angle=90,convexity = 10) translate([15, 0, 0]) circle(r = 5); // Element B = kleiner Ring rotate_extrude(angle = 91,convexity = 10) translate([15, 0, 0]) circle(r = 4); // Element C = Scheibe translate([15, 0, 0]) rotate([90,0,0]) cylinder(h = 1, r = 4, center = true); }

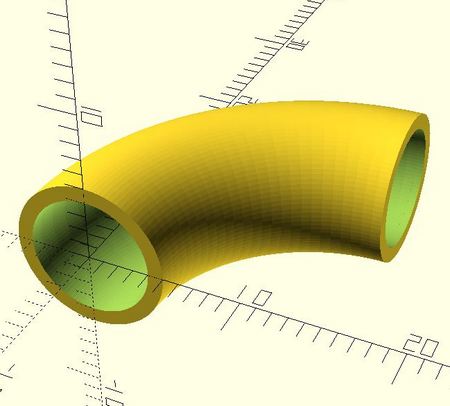

Rohrwinkel, gebogen, 9-12
// Rohrwinkel, gebogen 9-12 $fn = 100; rotate([0,0,90]) translate([0, -15, 0]) difference() { // Element A = grosser Ring rotate_extrude(angle=90,convexity = 10) translate([15, 0, 0]) circle(r = 5); // Element B = kleiner Ring rotate_extrude(angle = 91,convexity = 10) translate([15, 0, 0]) circle(r = 4); // Element C = Scheibe translate([15, 0, 0]) rotate([90,0,0]) cylinder(h = 1, r = 4, center = true); }
Rohrwinkel, gebogen, 9-6
// Rohrwinkel, gebogen 9-6 $fn = 100; mirror(v= [1, 1, 0] ) { translate([0, -15, 0]) difference() { // Element A = grosser Ring rotate_extrude(angle=90,convexity = 10) translate([15, 0, 0]) circle(r = 5); // Element B = kleiner Ring rotate_extrude(angle = 91,convexity = 10) translate([15, 0, 0]) circle(r = 4); // Element C = Scheibe translate([15, 0, 0]) rotate([90,0,0]) cylinder(h = 1, r = 4, center = true); } }

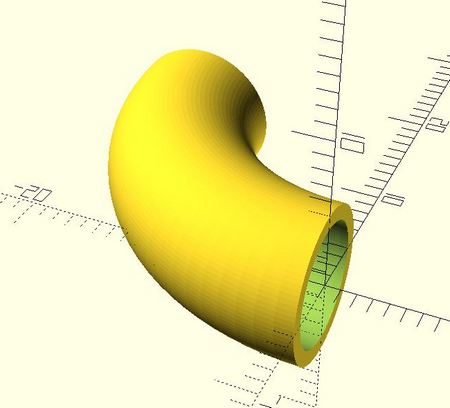

Rohrwinkel, gebogen, 6-9
// Rohrwinkel, gebogen 6-9 $fn = 100; rotate([0,0,180]) translate([0, -15, 0]) difference() { // Element A = grosser Ring rotate_extrude(angle=90,convexity = 10) translate([15, 0, 0]) circle(r = 5); // Element B = kleiner Ring rotate_extrude(angle = 91,convexity = 10) translate([15, 0, 0]) circle(r = 4); // Element C = Scheibe translate([15, 0, 0]) rotate([90,0,0]) cylinder(h = 1, r = 4, center = true); }
Rohrwinkel, gebogen, 6-3
// Rohrwinkel, gebogen 6-3 $fn = 100; mirror(v= [0, 1, 0] ) { translate([0, -15, 0]) difference() { // Element A = grosser Ring rotate_extrude(angle=90,convexity = 10) translate([15, 0, 0]) circle(r = 5); // Element B = kleiner Ring rotate_extrude(angle = 91,convexity = 10) translate([15, 0, 0]) circle(r = 4); // Element C = Scheibe translate([15, 0, 0]) rotate([90,0,0]) cylinder(h = 1, r = 4, center = true); } }
Rohrwinkel, gebogen, 3-12
// Rohrwinkel, gebogen 3-12 $fn = 100; rotate([0,0,-90]) mirror(v= [1, 0, 0] ) { translate([0, -15, 0]) difference() { // Element A = grosser Ring rotate_extrude(angle=90,convexity = 10) translate([15, 0, 0]) circle(r = 5); // Element B = kleiner Ring rotate_extrude(angle = 91,convexity = 10) translate([15, 0, 0]) circle(r = 4); // Element C = Scheibe translate([15, 0, 0]) rotate([90,0,0]) cylinder(h = 1, r = 4, center = true); } }

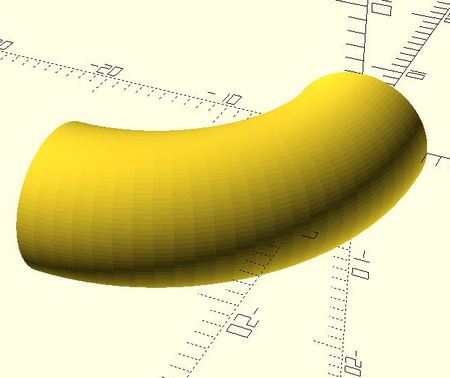

Rohrwinkel, gebogen, 3-6
// Rohrwinkel, gebogen 3-6 $fn = 100; rotate([0,0,270]) translate([0, -15, 0]) difference() { // Element A = grosser Ring rotate_extrude(angle=90,convexity = 10) translate([15, 0, 0]) circle(r = 5); // Element B = kleiner Ring rotate_extrude(angle = 91,convexity = 10) translate([15, 0, 0]) circle(r = 4); // Element C = Scheibe translate([15, 0, 0]) rotate([90,0,0]) cylinder(h = 1, r = 4, center = true); }
